Trailer Detachable Al-Ko Brake Cables - Old AL-KO Pattern - 23.5mm Bell Housing

KNOTTSKU: 476669

Size: 530/706
Sale price£18.77

Tax included Shipping calculated at checkout

In stock (7 units), ready to be shipped or collected

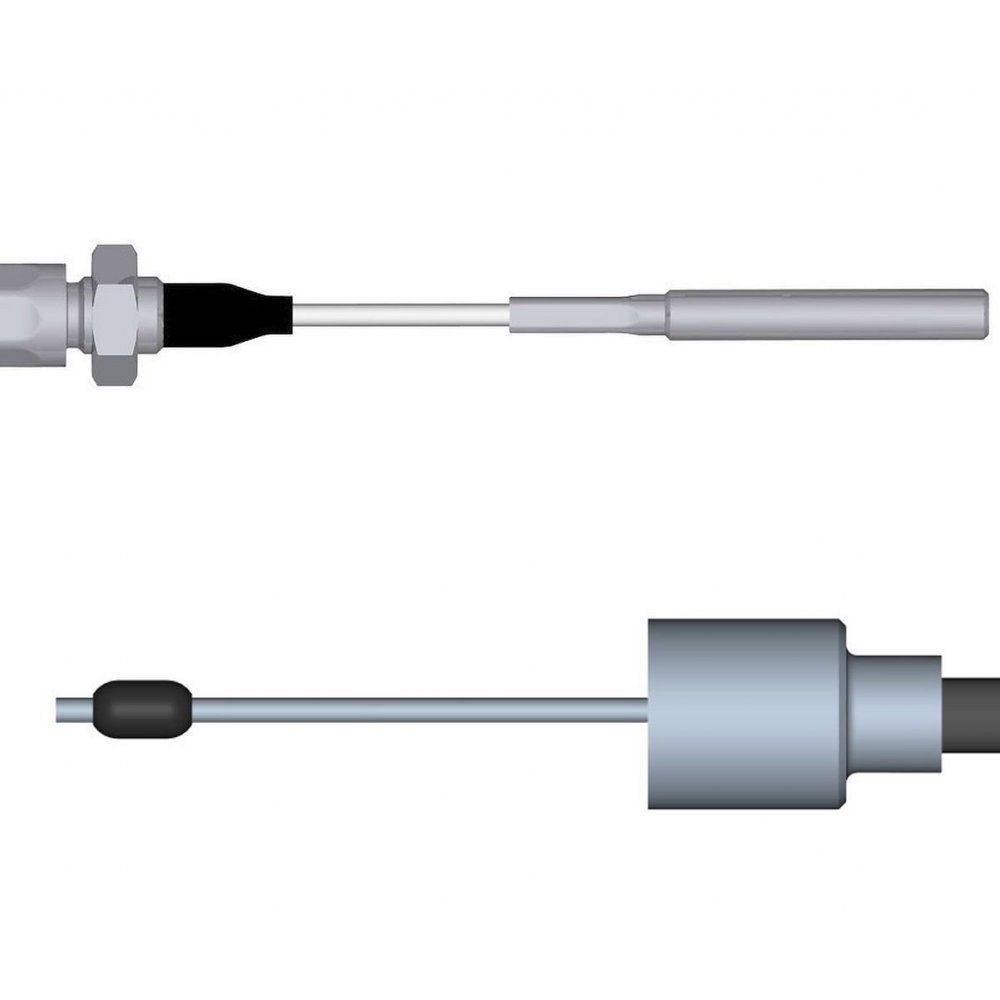

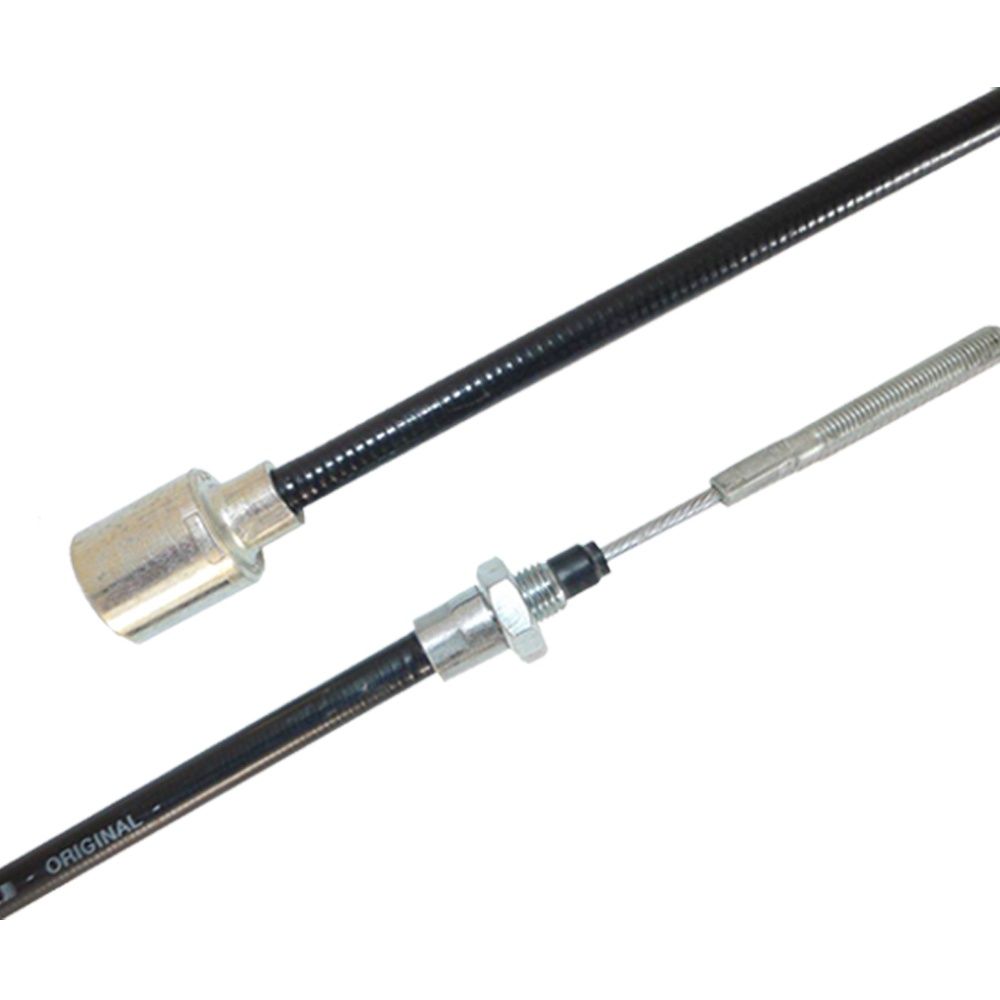

Trailer Brake Cables – Detachable - Old AL-KO Pattern - 23.5mm Bell Housing Size

  • Brake cable which links the trailer brake drum to the trailer compensator/central brake rod.
  • Fits older AL-KO braking systems with the threaded compensator fitting instead of the modern “nipple” end
  • Fits to brake drum backplate using a detachable bell fitting over the two backplate half-shells.
  • The inner cable at the brake drum end has a nipple to hook into the brake drum expander.
  • The other end of the inner cable has a M8 size threaded bar to fit into the trailer compensator.
  • Please note these are non-maintenance items and should be regularly checked for kinks and sticking cables.
  • Outer Cable (Black Cable Section) Length: 770mm - 1620mm
  • Inner Cable (Metal Cable) Length: 980mm - 1830mm
  • Brake Drum Fitting: Bell Housing (23.5mm Inner Diameter, 27mm Outer Diameter)
  • Compensator Fitting: M8 Size Threaded Bar
  • Inner Cable Size: 3.5mm

 Available in the following sizes:

  • 530-706mm
  • 770-980mm (35122.03)
  • 890-1100mm (35122.04)
  • 1020-1230mm (35122.05)
  • 1130-1340mm (35122.06)
  • 1320-1530mm (35122.07)
  • 1430-1640mm (35122.08)
  • 1620-1830mm (35122.09)
