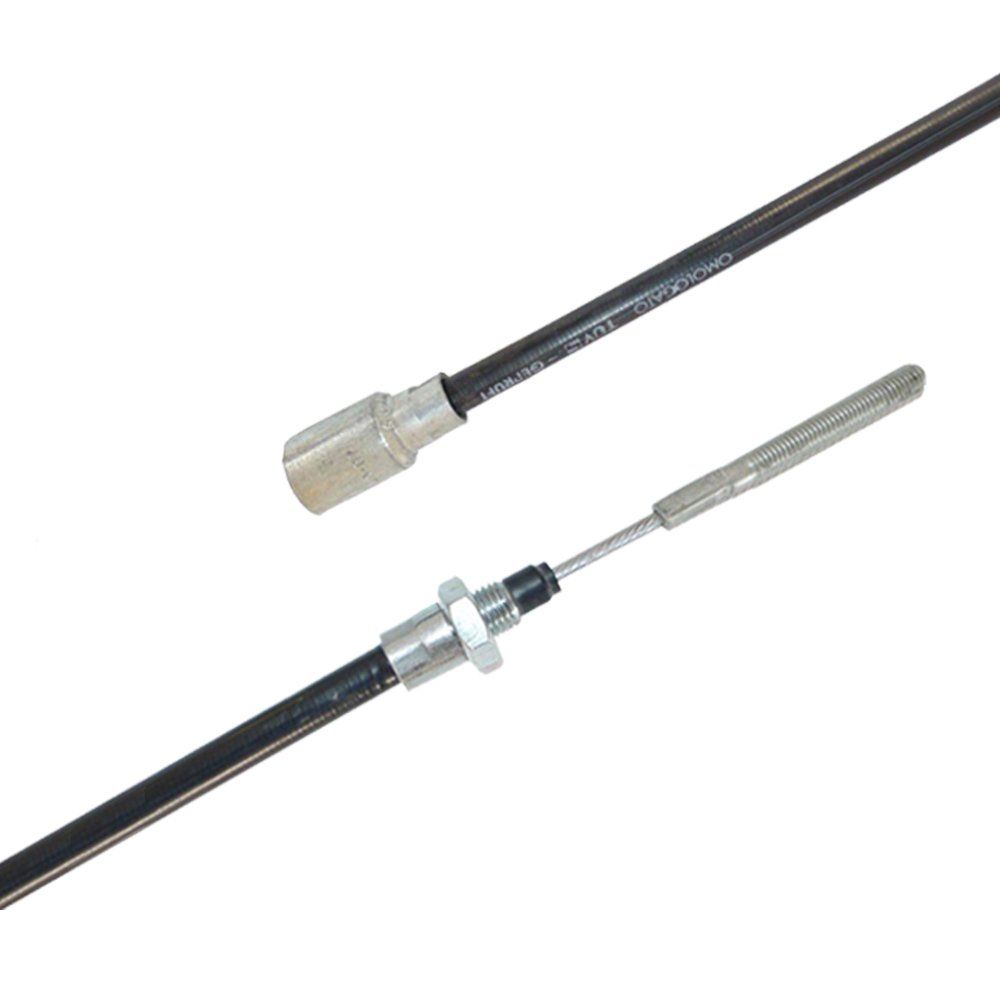

Detachable Brake Cables - 18.5mm Diameter Fitting

Knott Avonride Trailer Brake Cables – Detachable – 18.5mm Diameter Fitting

• Brake cable which links the trailer brake drum to the trailer compensator/central brake rod.
• Detachable design for quicker fitting and removal.

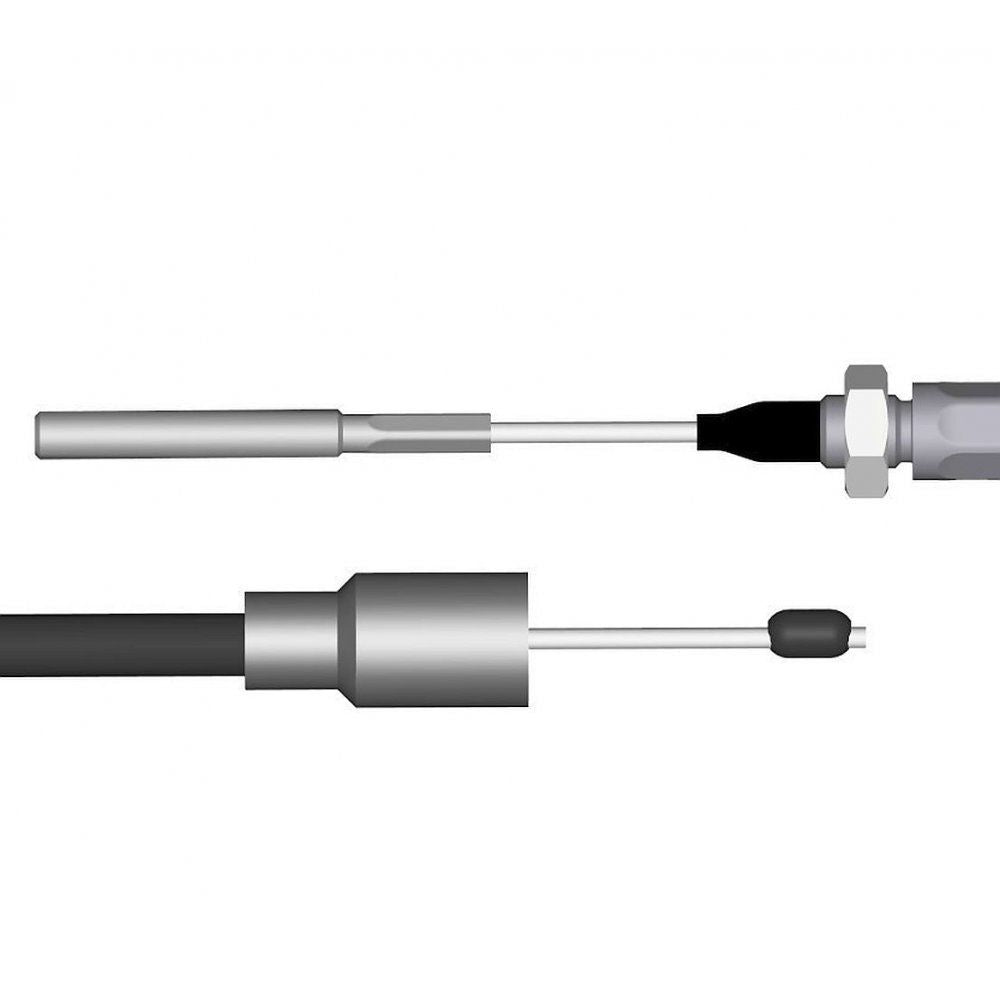

• Fits to Knott brake drums using a quick-release 18.5mm inner diameter "cup" fitting and pressed steel nipple.
• The other end of the inner cable has a M8 size threaded bar to fit into the trailer compensator.
• Please note these are non-maintenance items and should be regularly checked for kinks and sticking cables.

Specification

• Outer Cable (Black Cable Section) Length: 630mm - 2800mm
• Inner Cable (Metal Cable) Length: 840mm - 3000mm
• Brake Drum Fitting: "Trumpet" Shape Housing (18.5mm Inner Diameter, 22mm Outer Diameter)
• Compensator Fitting: M8 Size Threaded Bar
• Inner Cable Size: 3.5mm

Available in the following sizes:

• 630-840mm (33921.1.03)
• 730-940mm (33921.1.06)
• 830-1040mm (33921.1.07)
• 930-1140mm (33921.1.09)
• 1030-1240mm (33921.1.11)
• 1130-1340mm (33921.1.13)
• 1230-1440mm (33921.1.14)
• 1330-1540mm (33921.1.15)
• 1430-1640mm (33921.1.16)
• 1530-1740mm (33921.1.17)
• 1630-1840mm (33921.1.18)
• 1930-2140mm (33921.1.35)
• 2030-2240mm (33921.1.24)
• 2800-3000mm (33921.1.30)

Please note that the sizes shown are for the black outer cable only and then for the inner cable length.
