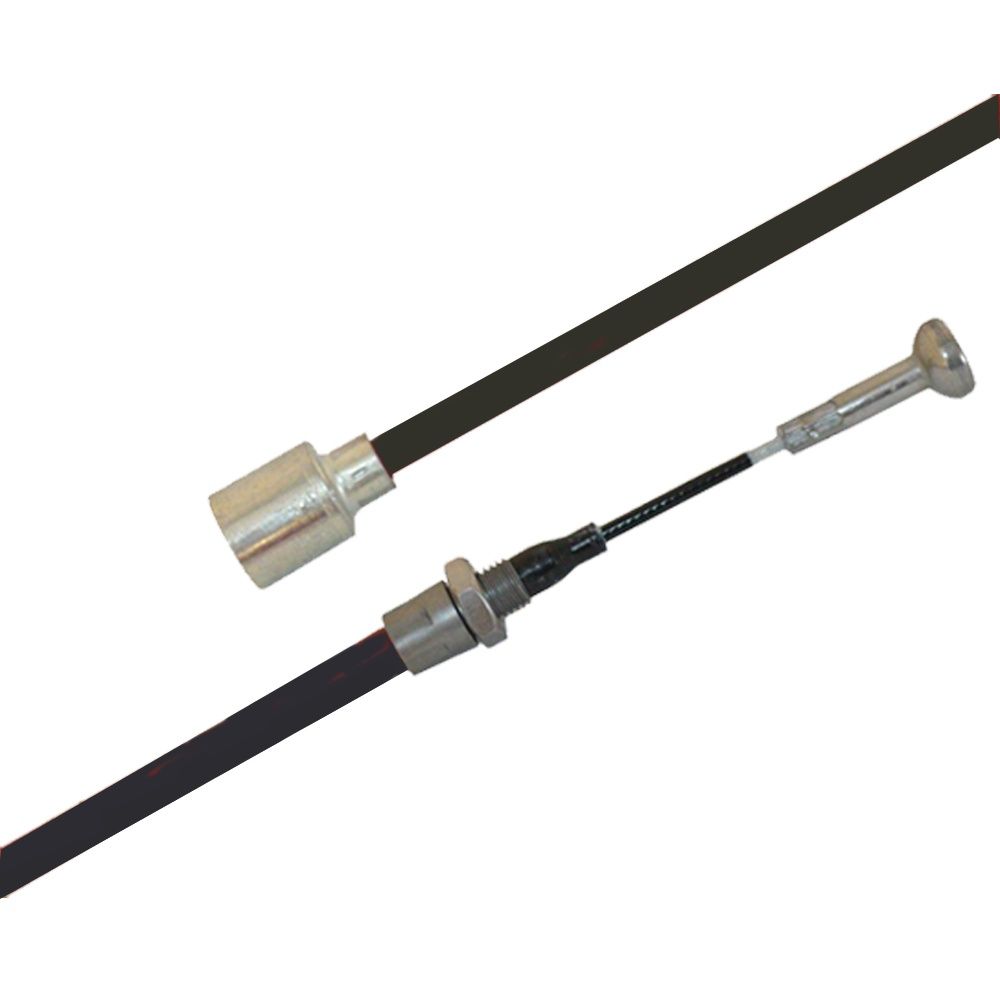

Trailer Detachable Knott Brake Cables - AL-KO Pattern - Pronto Fit - 23.5mm Bell Housing

Trailer Brake Cables – Detachable Type - AL-KO Pattern - Pronto Fit - 23.5mm Bell Housing Size

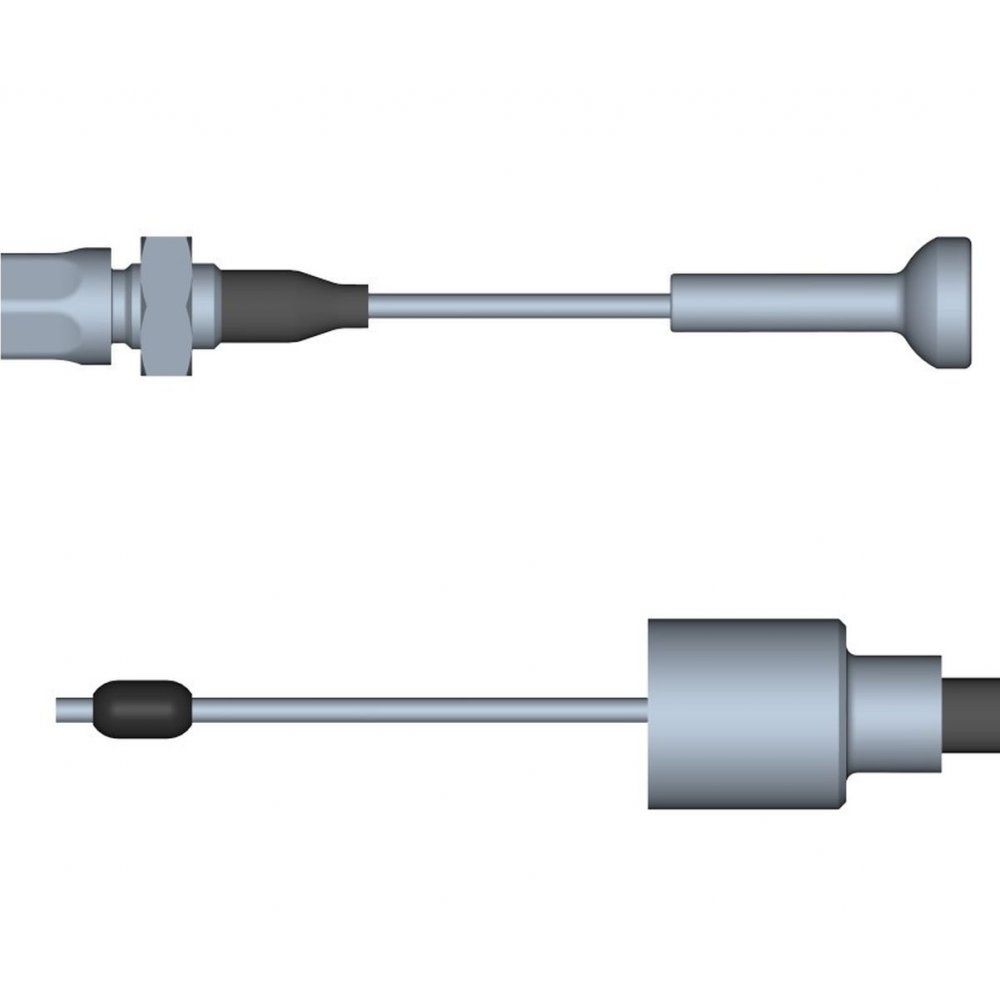

• Brake cable which links the trailer brake drum to the trailer compensator/central brake rod.
• Fits to brake drum backplate using a detachable bell fitting over the two backplate half-shells.
• The inner cable at the brake drum end has a nipple to hook into the brake drum expander.
• The other end of the inner cable has a “Pronto Fit” nipple end to fit into the modern slotted AL-KO compensators.
• Please note these are non-maintenance items and should be regularly checked for kinks and sticking cables.

Specification

• Outer Cable (Black Cable Section) Length: 700mm - 1790mm
• Inner Cable (Metal Cable) Length: 966mm - 1986mm
• Brake Drum Fitting: Bell Housing (23.5mm Inner Diameter, 27mm Outer Diameter)
• Compensator Fitting: “Pronto Fit” nipple end – fits to AL-KO slotted compensator
• Inner Cable Size: 3.5mm

Available in the Following Sizes:

• 770-966mm (980203.02)
• 890-1086mm (980203.03)
• 1020-1216mm (980203.04)
• 1130-1326mm (980203.05)
• 1320-1516mm (980203.06)
• 1430-1626mm (980203.07)
• 1620-1816mm (980203.08)
• 1790-1986mm (980203.09)
