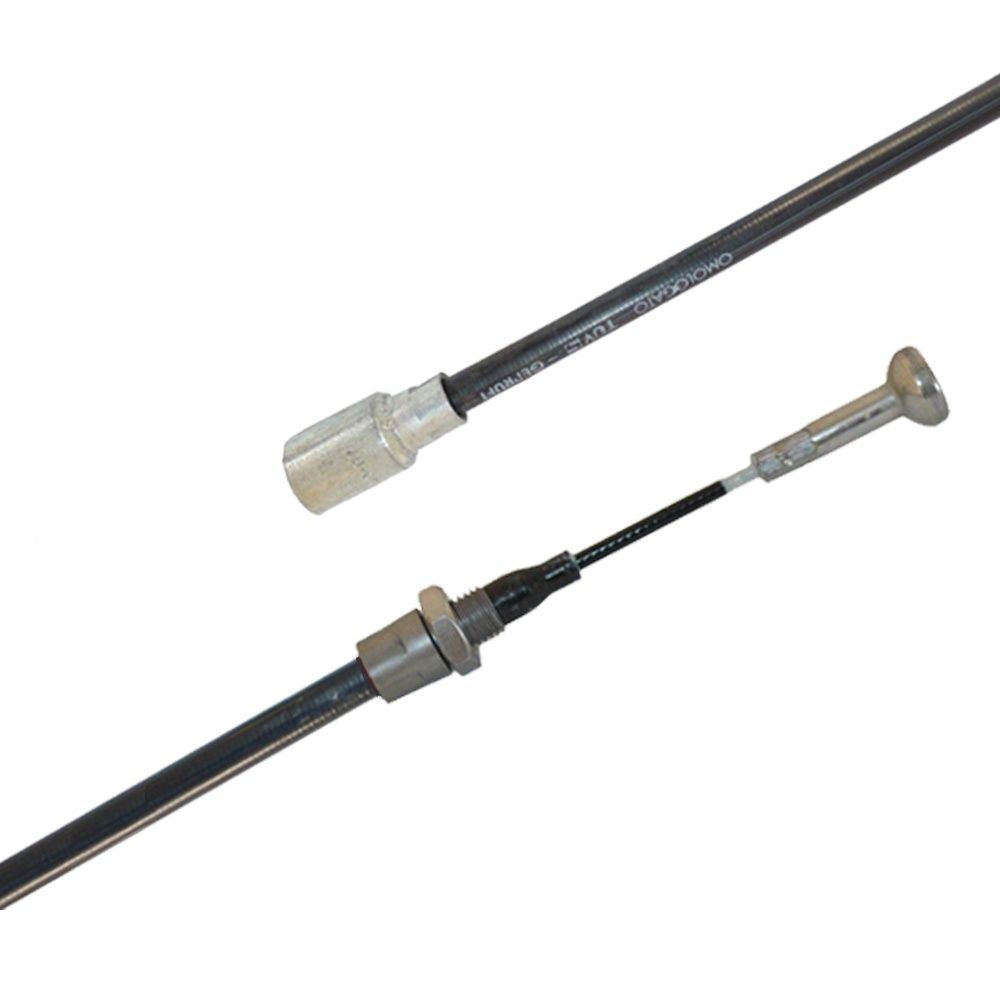

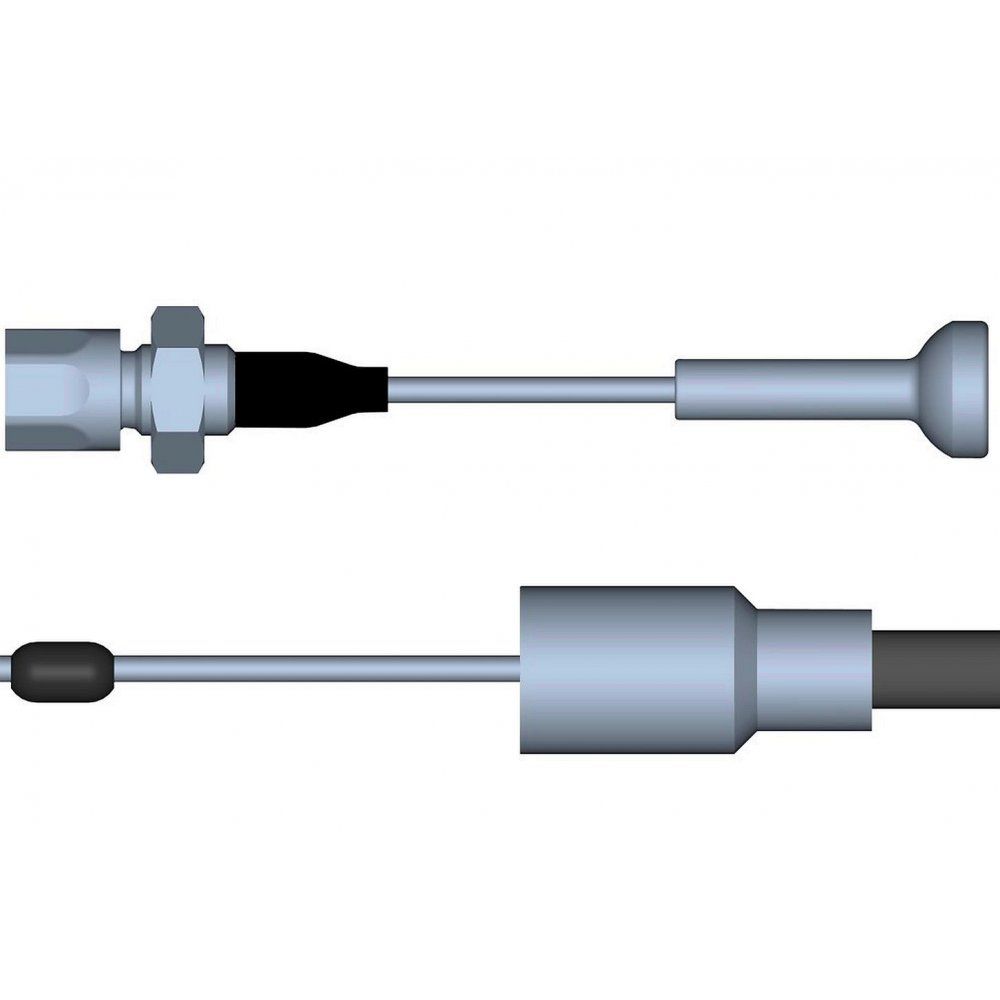

Knott Avonride Trailer Brake Cables – Detachable Type - Pronto Fit - 18.5mm Bell Housing Size
- Brake cable which links the trailer brake drum to the trailer compensator/central brake rod.
- Fits to brake drum backplate using a detachable bell fitting over the two backplate half-shells.
- The inner cable at the brake drum end has a nipple to hook into the brake drum expander.
- The other end of the inner cable has a “Pronto Fit” nipple end to fit into the modern slotted Knott compensators.
- Please note these are non-maintenance items and should be regularly checked for kinks and sticking cables.
Specification
- Outer Cable (Black Cable Section) Length: 430mm - 2030mm
- Inner Cable (Metal Cable) Length: 620mm - 2220mm
- Brake Drum Fitting: Bell Housing (18.5mm Inner Diameter, 22mm Outer Diameter)
- Compensator Fitting: “Pronto Fit” nipple end – fits to Knott slotted compensator
- Inner Cable Size: 3.5mm
Available in the following sizes:
- 430-620mm (980202.01)
- 530-720mm (980202.02)
- 630-820mm (980202.03)
- 730-920mm (980202.06)
- 830-1020mm (980202.07)
- 930-1120mm (980202.09)
- 1030-1220mm (980202.11)
- 1130-1320mm (980202.13)
- 1230-1420mm (980202.14)
- 1330-1520mm (980202.15)
- 1430-1620mm (980202.16)
- 1530-1720mm (980202.17)
- 1630-1820mm (980202.18)
- 1730-1920mm (980202.25)
- 1830-2020mm (980202.23)
- 2030-2220mm (980202.24)
