- 50mm Ball Coupling Head = Fitted with cast locking head
- Towing Capacity = 1400 – 2700kg

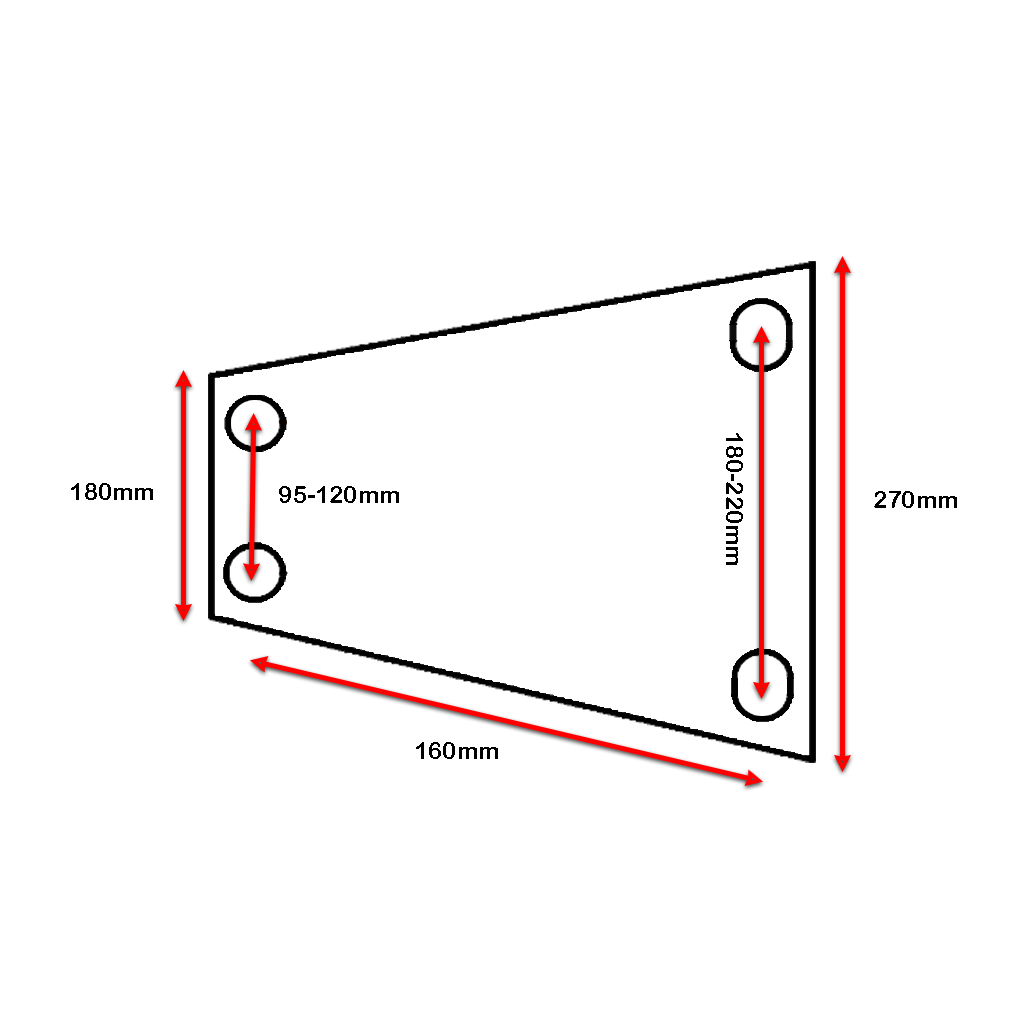

- Front Slotted Hole Centres = 100mm - 120mm mounting
- Overall body width Front = 180mm
- Rear Hole Centres = 180mm - 220mm
- Overall body width Rear = 270mm
- Handbrake with Oil-Damped Energy Store = For progressive lever movement
- Grab Handle = For easy trailer manoeuvring
- Integral Safety Skid = Protects the handbrake and overrun lever from road objects
- Heavy Duty Cast Iron Material = With additional strengthening in the coupling base
- Breakaway Cable Included
Spare Parts
|
Part No |
Our Sku No |
Description |
| 437639 |
Coupling Eye KNOTT 40mm 2700kg Ø 50mm M12/M12 | |
| 1 |
437486 |
Damper KNOTT 1400 - 2700kg (87 0031 09) M12 bolt hole |
| 2 |
459204 |
Breakaway cable |
| 3 |
437233 |
Drawtube KNOTT 2700kg 50mm |
| 4 |
437387 |
Handbrake Assembly |
| 5 |
437431 |
Energy Store KNOTT to 3500kg Black Plastic (990029.01) |
| 6 |
601377 |
Grab Handle |
| 7 |
601375 |
Energy Store Bracket |
| 8 |
437745 |
Clamp Pad KNOTT |
| 8 |
437738 |
Clamp Handle KNOTT Long |
| 9 |
601374 |
Bolt-on Skid |
| 10 |
601373 |
Overrun Lever |
| 11 |
437325 |
Bellows (Towing Eye) |
| 11 |
437349 |
Bellows (Coupling Head) |
| 12 |
437554 |
Coupling Head KNOTT 2700kg Ø 45/50mm M12/M12 |
